HIFLUX high-pressure range

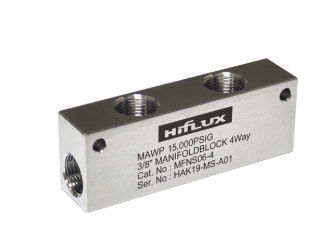

Hiflux high pressure fittings, accessories, and manifold components for industrial and extreme service applications.
5
Series
150,000 psi
Highest rating
178
Models
Every model with prices online, or ask us about any series.
Cone and thread fittings in cold-formed stainless steel 316, rated from 10,000 psi to 150,000 psi, in elbow, tee and cross bodies with matched glands, collars and sleeves. Operating range −423°F (−252°C) to 1200°F (649°C).
Models
| Rating | Tube sizes | Connection system |
|---|---|---|
| 10,000 psi | 1/2" | Gland and sleeve (24° cone) |
| 15,000 psi | 1/8", 1/4", 3/8" | Gland and sleeve (24° cone) |
| 20,000 psi | 1/4", 3/8", 9/16", 3/4", 1" | Gland, collar and nipple (60° cone) |
| 30,000 psi | 1/8", 1" | Gland, collar and nipple (60° cone) |
| 60,000 psi | 1/4", 3/8", 9/16" | Gland, collar and nipple (60° cone) |
| 100,000 psi | 1/4", 3/8", 9/16" | Gland, collar and nipple (60° cone) |
| 150,000 psi | 3/8" | Gland, collar and nipple (60° cone) |
Metric gland threads (M16×1.5P, M20×1.5P, M26×1.5P) are available at 60,000 psi alongside the UNF standard.

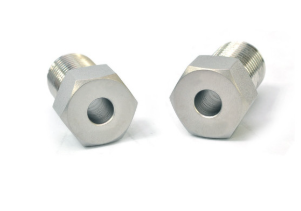

A fitting is the body — elbow, tee or cross. The connection also needs an accessory set: a gland, plus a sleeve below 20,000 psi or a collar above it. Both are supplied as matched sets, and components do not cross the 20,000 psi split.
Above 20,000 psi the collar and nipple threads are left-hand while the gland threads into the body right-hand. Worth briefing anyone assembling these for the first time.
Anti-vibration fitting and accessory sets are available at 20,000 psi (1/4" to 1") and 60,000 psi (1/4" to 9/16"), adding a collet to the assembly. Part numbers carry an -AV suffix. Specify these downstream of pumps and compressors — and clamp the run as well.
