High Pressure Regulators

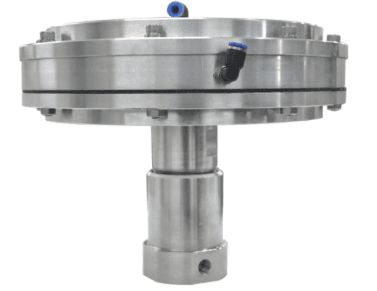

ABPR (Air Operating Back Pressure Regulator)

Name: ABPR (Air Operating Back Pressure Regulator)
Brand: Hiflux

The ABPR (Air Operating Back Pressure Regulator) works on the same principle as a standard BPR, steadily maintaining a set inlet pressure by relieving excess pressure through the outlet as it builds past the setpoint. Unlike a manually set BPR, the ABPR's setting pressure is adjusted through an electronic regulator and can be controlled remotely, available in 10,000psi (0~5bar operating air pressure) and 20,000psi (0~3bar operating air pressure) versions. It offers six different relief pressure ranges, bubble-tight shut-off at all reseat pressures, and an optional high-flow Cv=0.6 model, with a rated ambient operating and fluid media temperature of -55°C to 100°C.

Specifications

Inlet Pressure Options

10,000psi / 20,000psi

Operating Air Pressure

10,000psi: 0~5bar / 20,000psi: 0~3bar

Control

Electronically adjustable, remote control capable

Relief Pressure Ranges

Six different ranges

O-Ring Type

Urethane (U), NBR (N), Viton (V), or Silicone (S)

Special Options

High flow Cv=0.6 model optional

Features

Setting pressure adjusted through electronic regulator and controlled remotely

Six different relief pressure ranges

Bubble-tight shut-off at all reseat pressures

High flow Cv=0.6 model optional

Ambient operating & fluid media temperature: -55°C to 100°C

Applications

High pressure fluid handling for chemical, petrochemical, water-jet, research, and oil & gas industries

Available across 5,500–150,000psi pressure range, body types, and port sizes

Used across high-temperature and high-pressure products, chemical oil refining, water jet, oil & gas industry, and various research fields
